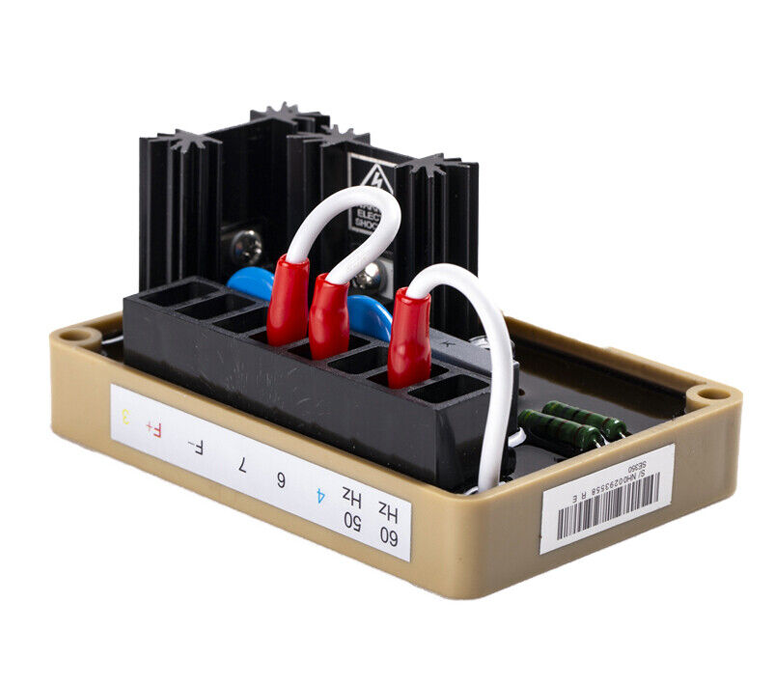

The  AVR SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the

output of a brushless AC generator by regulating the current into the exciter field.

SPECIFICATION: SE350  automatic voltage regulator

Sensing & Power Input : 190-240 Vac

Burden: 500 VA

Output Power- Continuous: 73 Vdc at 3.5 Adc (255w)

Output Power - Forcing(240 Vac Input Power): 105 Vdc at 5 Adc (525w)

Regulation: 1 .0%

Remote Voltage Adjustment Range: ± 10% with 2000 ohm rheostat

± 5% with l000 ohm rheostat

Frequency Compensation: Adjustable

Roll off frequency: 54-61 Hz for 60 Hz

45-51 Hz for 50 Hz

Operation Weight: 6.5 oz.

Operating Temperature: - 40°C to + 60°C

Storage Temperature: - 65°C to + 85°C

Power Dissipation: 8 watts maximum

Size: 3.94" L * 2.66” W * 2.20: H

Gross Weight: 0.2 KG

Voltage Buildup: Internal provisions forautomatic voltage

build up from generator residual voltage as low as 10 Vac.

EMI Suppression : Internal Electromagnetic Interference Filter (EMI Filter )
