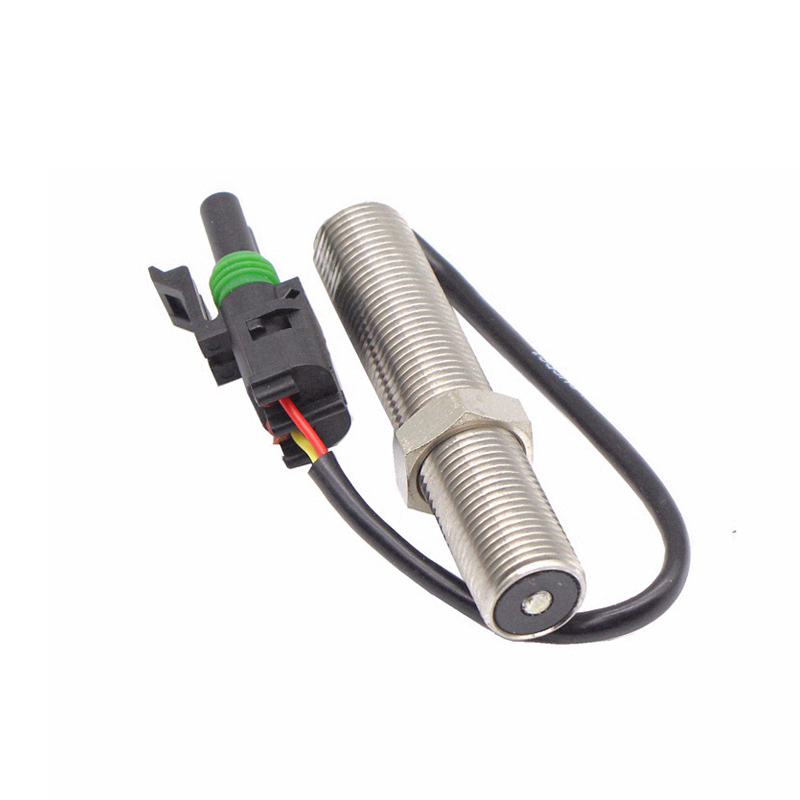

MPU 3034572 Generator Magnetic Pickup Speed Sensor Length 120MM

MPU 3034572 Generator Magnetic Pickup Speed Sensor Length 120MM

Product Description

MPU 3034572 Generator Magnetic Pickup Speed Sensor for K19 K38 G38 QSK38 KTA38GC K106 Engine Universal Transducer

Generator Magnetic Pickup Speed Sensor MPU 3034572

Magnetic Speed Sensors:

3034572-80mm: 5/8- 18 UNF- 2A/ M16*1.0, 80mm(3.15”)

3034572-120mm: 5/8- 18 UNF- 2A/ M16*1.0, 120mm(4.72”)


MPU 3034572 Specifications

Thread Size: 5/8-18 unf-2A

Tap Drill Size: 37/64 inch

Proximity to Gear Teeth: .028 in. min.-.042. in. max.

(Approximately 1/2 to 3/4 turn)

Temperature Range: -55℃to 105℃

Output at Cranking Speed: 1.5 volts AC minimum

Maximum Output: 30 volts AC

Coil Resistance: 300 ohms maximum
