| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | None |

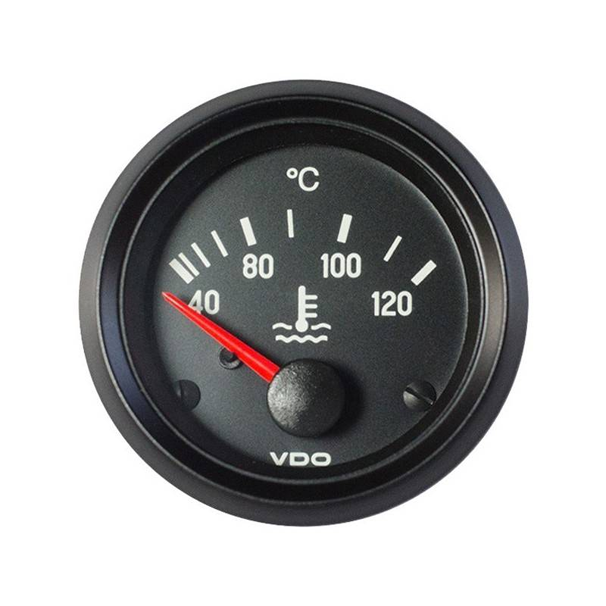

| Coolant temperature range: | +40°C to +120°C |
| Sensor signal coolant temperature gauge: | VDO NTC Thermistor 287.4-22.7 Ohm |
| Accuracy: | Not specified by VDO |
| Connection: | AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
| Operating voltage: | 21.5 - 30 Volt DC |
| Current consumption without illumination: | 131 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 24V - 2 Watt White - Green - Red |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | None |
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
